In this project, I will create supervised models to predict which users are more likely to churn bank.
The Definition of Churn Rate:
Churn rate, in its broadest sense, is a measure of the number of individuals or items moving out of a collective group over a specific period. It is one of two primary factors that determine the steady-state level of customers a business will supportChurn rate, in its broadest sense, is a measure of the number of individuals or items moving out of a collective group over a specific period. It is one of two primary factors that determine the steady-state level of customers a business will support
#importing necessary packages
from sklearn import model_selection
# Support functions
from sklearn.model_selection import cross_val_score
from sklearn.model_selection import GridSearchCV
# from scipy.stats import uniform
from imblearn.over_sampling import SMOTE
from sklearn.decomposition import PCA
from sklearn.model_selection import train_test_split,cross_val_score
from sklearn.preprocessing import StandardScaler
from sklearn.compose import ColumnTransformer
from sklearn.pipeline import Pipeline
from sklearn.impute import SimpleImputer
from sklearn.preprocessing import StandardScaler, OneHotEncoder
from sklearn.model_selection import GridSearchCV
from imblearn.over_sampling import RandomOverSampler
from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.feature_extraction.text import CountVectorizer
from sklearn.feature_extraction.text import TfidfTransformer
# Fit models
from sklearn.linear_model import LogisticRegression
from sklearn.svm import SVC
from sklearn.ensemble import RandomForestClassifier
from sklearn.neighbors import KNeighborsClassifier
# Scoring functions
from sklearn.metrics import classification_report
from sklearn.metrics import confusion_matrix
from sklearn.metrics import roc_auc_score
from sklearn.metrics import roc_curve
from sklearn.metrics import f1_score as f1
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import plotly.graph_objs as go
from plotly.subplots import make_subplots
import plotly.express as ex
plt.rc('figure',figsize=(18,9))
# Set the no of columns to be displayed to 500
pd.set_option('display.max_columns', 500)
# Set the no of rows to be displayed to 300
pd.set_option('display.max_rows', 300)
#Reading files/Data
df = pd.read_csv('BankChurners.csv')
# Use 2 decimal places in output display
pd.set_option("display.precision", 2)
df.head()
# There are some columns looks irrelevant
df = df[df.columns[:-2]]
df.head()
# let's look at the statistical aspects of the dataframe
df.describe()
# Get the no of rows and columns
print('\t Dataset has {} rows and {} columns. '.format(df.shape[0],df.shape[1]))
df.shape
# Print the datatype of each column of the dataframe
df.info(verbose=1)
# Check if there any missing values
df.isna().sum()
# Check if there is any duplicate data
df.duplicated().sum()
# Check if there is only column with one value
df.nunique()
#Drop row if there is any missing values
df.dropna()
fig = make_subplots(rows=2, cols=1)
tr1=go.Box(x=df['Customer_Age'],boxmean=True)
tr2=go.Histogram(x=df['Customer_Age'],name='Age Histogram')
fig.add_trace(tr1,row=1,col=1)
fig.add_trace(tr2,row=2,col=1)
fig['layout']['xaxis']['title']="Age"
fig['layout']['xaxis2']['title']="Age"
# fig['layout']['yaxis1']['title']="Count"
fig['layout']['yaxis2']['title']="Count"
fig.update_layout(height=700, width=1200, title_text="Distribution of Customer Ages",
yaxis_title="Count",)
fig.write_html("./file1.html")
fig.show()
Customer age distribution is normal
fig = make_subplots(
rows=2, cols=2,subplot_titles=('','<b>Platinum Card Holders','<b>Blue Card Holders<b>','Residuals'),
vertical_spacing=0.09,
specs=[[{"type": "pie","rowspan": 2} ,{"type": "pie"}] ,
[None ,{"type": "pie"}] ,
]
)
fig.add_trace(
go.Pie(values=df.Gender.value_counts().values,labels=['<b>Female<b>','<b>Male<b>'],hole=0.3,pull=[0,0.3]),
row=1, col=1
)
fig.add_trace(
go.Pie(
labels=['Female Platinum Card Holders','Male Platinum Card Holders'],
values=df.query('Card_Category=="Platinum"').Gender.value_counts().values,
pull=[0,0.05,0.5],
hole=0.3
),
row=1, col=2
)
fig.add_trace(
go.Pie(
labels=['Female Blue Card Holders','Male Blue Card Holders'],
values=df.query('Card_Category=="Blue"').Gender.value_counts().values,
pull=[0,0.2,0.5],
hole=0.3
),
row=2, col=2
)
fig.update_layout(
height=800,
showlegend=True,
title_text="<b>Distribution Of Gender And Different Card Statuses<b>",
)
fig.show()
Although female are more than male in dataset, the difference is not that much large to effect the distribution.
fig = make_subplots(rows=2, cols=1)
tr1=go.Box(x=df['Dependent_count'],name='Dependent count Box Plot',boxmean=True)
tr2=go.Histogram(x=df['Dependent_count'],name='Dependent count Histogram')
fig.add_trace(tr1,row=1,col=1)
fig.add_trace(tr2,row=2,col=1)
fig.update_layout(height=700, width=1200, title_text="Distribution of Dependent counts (close family size)")
fig.show()
fig.write_html("./file3.html")
# fig =px.scatter(x=range(10), y=range(10))
fig = ex.pie(df,names='Education_Level',title='Propotion Of Education Levels',hole=0.43)
fig.write_html("./file4.html")
fig.show()
fig = ex.pie(df,names='Income_Category',title='Propotion Of Different Income Levels',hole=0.33)
fig.write_html("./file5.html")
fig.show()
fig = ex.pie(df,names='Card_Category',title='Propotion Of Different Card Categories',hole=0.33)
fig.write_html("./file6.html")
fig.show()
fig = make_subplots(rows=2, cols=1)
tr1=go.Box(x=df['Months_on_book'],name='Months on book Box Plot',boxmean=True)
tr2=go.Histogram(x=df['Months_on_book'],name='Months on book Histogram')
fig.add_trace(tr1,row=1,col=1)
fig.add_trace(tr2,row=2,col=1)
fig.update_layout(height=700, width=1200, title_text="Distribution of months the customer is part of the bank")
fig.write_html("./file7.html")
fig.show()
print('Kurtosis of Months on book features is : {}'.format(df['Months_on_book'].kurt()))
Since kurtosis is low as it clearly can be seen from graph and the result, the month as a feature is not normally distributed.
fig = make_subplots(rows=2, cols=1)
tr1=go.Box(x=df['Total_Relationship_Count'],name='Total no. of products Box Plot',boxmean=True)
tr2=go.Histogram(x=df['Total_Relationship_Count'],name='Total no. of products Histogram')
fig.add_trace(tr1,row=1,col=1)
fig.add_trace(tr2,row=2,col=1)
fig.update_layout(height=700, width=1200, title_text="Distribution of Total no. of products held by the customer")
fig.write_html("./file8.html")
fig.show()
fig = ex.pie(df,names='Attrition_Flag',title='Churn Customer vs Not Churn Customer',hole=0.33)
fig.write_html("./file14.html")
fig.show()
The above graph says majorty of the customers are existing customers. That means the data set is not balanced thus I will upsample the dataset to balance.
plt.figure(figsize = (24,170))
row_num = 50
index_pos = 1
for col in num_var:
plt.subplot(row_num, 3, index_pos)
sns.boxplot(y = col, x= 'Attrition_Flag', hue = 'Attrition_Flag', data = df)
index_pos = index_pos + 1
plt.tight_layout()
plt.show()
# Visulazitaion with heatmap to observe correlation
fig, ax = plt.subplots(figsize=(16, 12))
df_corr = df.corr(method="pearson")
# mask = np.zeros_like(np.array(df_corr))
# mask[np.triu_indices_from(mask)] = True
ax = sns.heatmap(df_corr, annot=True)
df_copy = df.copy()
df_copy.head()
df_copy.columns
Here, dummy variable will be created for some features and also unknown columns will be dropped.
# Encoding Categorical Variables
df_copy.Attrition_Flag =df_copy.Attrition_Flag.replace({'Attrited Customer':1,'Existing Customer':0})
df_copy.Gender = df_copy.Gender.replace({'F':1,'M':0})
df_copy = pd.concat([df_copy,pd.get_dummies(df_copy['Education_Level']).drop(columns=['Unknown'])],axis=1)
df_copy = pd.concat([df_copy,pd.get_dummies(df_copy['Income_Category']).drop(columns=['Unknown'])],axis=1)
df_copy = pd.concat([df_copy,pd.get_dummies(df_copy['Marital_Status']).drop(columns=['Unknown'])],axis=1)
df_copy = pd.concat([df_copy,pd.get_dummies(df_copy['Card_Category']).drop(columns=['Platinum'])],axis=1)
df_copy.drop(columns = ['Education_Level','Income_Category','Marital_Status','Card_Category','CLIENTNUM'],inplace=True)
df_copy[df_copy.columns[:]]
As aformentioned , it is obvious that data is imbalanced hereI use SMOTE() method to balance data.
# Here data is upsampled since the data is imbalanced
oversample = SMOTE()
X, y = oversample.fit_resample(df_copy[df_copy.columns[1:]], df_copy[df_copy.columns[0]])
usampled_df = X.assign(Churn = y)
usampled_df
ohe_data =usampled_df[usampled_df.columns[15:-1]].copy()
usampled_df = usampled_df.drop(columns=usampled_df.columns[15:-1])
N_COMPONENTS = 4
pca_model = PCA(n_components = N_COMPONENTS )
pc_matrix = pca_model.fit_transform(ohe_data)
evr = pca_model.explained_variance_ratio_
total_var = evr.sum() * 100
cumsum_evr = np.cumsum(evr)
trace1 = {
"name": "individual explained variance",
"type": "bar",
'y':evr}
trace2 = {
"name": "cumulative explained variance",
"type": "scatter",
'y':cumsum_evr}
data = [trace1, trace2]
layout = {
"xaxis": {"title": "Principal components"},
"yaxis": {"title": "Explained variance ratio"},
}
fig = go.Figure(data=data, layout=layout)
fig.update_layout( title='Explained Variance Using {} Dimensions'.format(N_COMPONENTS))
fig.write_html("./file9.html")
fig.show()
usampled_df_with_pcs = pd.concat([usampled_df,pd.DataFrame(pc_matrix,columns=['PC-{}'.format(i) for i in range(0,N_COMPONENTS)])],axis=1)
X_features = ['Total_Trans_Ct','PC-3','PC-1','PC-0','PC-2','Total_Ct_Chng_Q4_Q1','Total_Relationship_Count']
X = usampled_df_with_pcs[X_features]
y = usampled_df_with_pcs['Churn']
# Splitted data after oversampling
X_train_smt,X_test_smt, y_train_smt, y_test_smt = train_test_split(X, y,test_size=0.2,random_state=42)
Here, I will create a pipeline along with parameters for different classification model. GridSearch will be used to chose best hyperparameters among different combination of hyperparameters.
# HyperParameters for Tunning
param_grid_knn = {
# HyperParameters K Nearest Neighbors Model
'classifier__n_neighbors': np.arange(1,19,2),
"prep__num__imputer__strategy": ['mean','median']
}
param_grid_forest = {
# HyperParameters for Random Forest Model
"classifier__n_estimators": [10, 100],
"classifier__max_depth":[5,8,15,25,],
"classifier__min_samples_leaf":[1,2,5,10,15],
"classifier__max_leaf_nodes": [2, 5,10]
}
param_grid_logReg= {
# HyperParameters for Logistic Regression Model
"classifier__penalty": ['l2'],
"classifier__C": np.logspace(0, 4, 10)
}
param_grid_svc ={
# HyperParameters for Support Vector Machne Model
'classifier__gamma': [0.01],
'classifier__kernel': ['linear', 'poly', 'rbf'],
'classifier__C': [100]
}
# Here created a function for pipline
def pipline_model(model):
numeric_feature = ['Total_Trans_Ct','PC-3','PC-1','PC-0','PC-2','Total_Ct_Chng_Q4_Q1','Total_Relationship_Count']
numeric_transformer = Pipeline(steps=[
('imputer',SimpleImputer(strategy= 'median')),
('scaler',StandardScaler())
])
preprocessor = ColumnTransformer(transformers=[
('num', numeric_transformer, numeric_feature)
])
clf = Pipeline(steps=[
('prep', preprocessor),
('classifier',model),
])
return clf
# Creating a variable for pipeline_model function for each model.
clf_svc = pipline_model(SVC(probability=True))
clf_random_forest = pipline_model(RandomForestClassifier())
clf_knn = pipline_model(KNeighborsClassifier())
clf_logisticreg = pipline_model(LogisticRegression( max_iter=1000))
# Creating a variable for Gridsearch for each model
grid_search_forest = GridSearchCV(clf_random_forest,param_grid,cv=10,scoring='neg_mean_squared_error')
grid_search_knn = GridSearchCV(clf_knn,param_grid,cv=10)
grid_search_svc = GridSearchCV(clf_svc,param_grid,refit=True,verbose=2)
grid_search_logReg = GridSearchCV(clf_logisticreg,param_grid,cv=10)
## Created a function run all four models with their pipelnes to compare their results.
knn= 1
forest= 2
svc= 3
logisticreg= 4
def model_score(GSCV):
if GSCV == 1:
grid_search_knn = GridSearchCV(clf_knn,param_grid,cv=10)
grid_search_knn.fit(X_train_smt,y_train_smt)
pred=grid_search_knn.predict(X_test_smt)
print("Confusion matrix of knn:\n ",confusion_matrix(y_test_smt,pred))
print("\n\n")
print(classification_report(y_test_smt,pred))
score= grid_search_knn.score(X_test_smt,y_test_smt)
print('Score of knneighbors is ',score)
cros_val_score = cross_val_score(clf_knn,X_train_smt, y_train_smt).mean()
print("Cross validation score of knneighbors is ", cros_val_score)
elif GSCV == 2:
grid_search_forest = GridSearchCV(clf_random_forest,param_grid,cv=10)
grid_search_forest.fit(X_train_smt,y_train_smt)
pred=grid_search_forest.predict(X_test_smt)
print("Confusion matrix of random forest:\n ",confusion_matrix(y_test_smt,pred))
print("\n\n")
print(classification_report(y_test_smt,pred))
score= grid_search_forest.score(X_test_smt,y_test_smt)
print('Score of random forest is ',score)
cros_val_score = cross_val_score(clf_random_forest,X_train_smt, y_train_smt).mean()
print("Cross validation score of random forest is ", cros_val_score)
elif GSCV == 3:
ggrid_search_svc = GridSearchCV(clf_svc,param_grid,refit=True,verbose=2)
ggrid_search_svc.fit(X_train_smt,y_train_smt)
pred=ggrid_search_svc.predict(X_test_smt)
print("Confusion matrix of SVC:\n ",confusion_matrix(y_test_smt,pred))
print("\n\n")
print(classification_report(y_test_smt,pred))
score= ggrid_search_svc.score(X_test_smt,y_test_smt)
print('The score of svc is ',score)
cros_val_score = cross_val_score(clf_svc,X_train_smt, y_train_smt).mean()
print("the cross validation score of SVC is ", cros_val_score)
elif GSCV == 4:
grid_search_logReg = GridSearchCV(clf_logteg,param_grid,cv=10)
grid_search_logReg.fit(X_train_smt,y_train_smt)
pred=grid_search_logReg.predict(X_test_smt)
print("Confusion matrix of logisticReg :\n ",confusion_matrix(y_test_smt,pred))
print("\n\n")
print(classification_report(y_test_smt,pred))
score= grid_search_logReg.score(X_test_smt,y_test_smt)
print('The score of rlogistic regression is ',score)
cros_val_score = cross_val_score(clf_logteg,X_train_smt, y_train_smt).mean()
print("the cross validation score of logistic regression is ", cros_val_score)
# Here I used VotingClassifier to select best model among four models.
from sklearn.ensemble import VotingClassifier
model = VotingClassifier(estimators=[('lr', grid_search_logReg), ('knn',grid_search_knn),('forest',grid_search_forest),('svc', grid_search_svc)], voting='soft')
model.fit(X_train_smt,y_train_smt)
print(model.score(X_test_smt,y_test_smt))
Random Forest Model gives the highest result among the models, however Votingclasiffier select Sopport Vector machine model although it is slightly smaller than Random Forest Model. Since SVM is selected, I will save this model as a reference.
grid_search_svc = GridSearchCV(clf_svc,param_grid_svc,refit=True,verbose=2)
best_model = grid_search_svc.fit(X_train_smt,y_train_smt)
import joblib
from sklearn.metrics import accuracy_score
from sklearn.metrics import f1_score
# saving the model to local disk
# filename = 'finalized_model.sav'
# joblib.dump(best_model, filename)
# load the model from local disk to use it
loaded_model = joblib.load(filename)
result = loaded_model.score(X_test_smt, y_test_smt)
print(result)
print(loaded_model.best_estimator_)
print(loaded_model.best_score_)
predict = loaded_model.predict(X_test_smt)
print("accuracy ", accuracy_score(y_test_smt,predict))
print("f1score ", f1_score(y_test_smt,predict))
#
rf_f1_cross_val_scores = cross_val_score(clf_random_forest,X_train_smt,y_train_smt,cv=5,scoring='f1')
knn_f1_cross_val_scores=cross_val_score(clf_knn,X_train_smt,y_train_smt,cv=5,scoring='f1')
svm_f1_cross_val_scores=cross_val_score(clf_svc,X_train_smt,y_train_smt,cv=5,scoring='f1')
lreg_f1_cross_val_scores=cross_val_score(clf_logisticreg,X_train_smt,y_train_smt,cv=5,scoring='f1')
fig = make_subplots(rows=4, cols=1,shared_xaxes=True,subplot_titles=('Random Forest Cross Val Scores',
'KNN Cross Val Scores',
'SVM Cross Val Scores', 'Logistic Regression'))
fig.add_trace(
go.Scatter(x=list(range(0,len(rf_f1_cross_val_scores))),y=rf_f1_cross_val_scores,name='Random Forest'),
row=1, col=1
)
fig.add_trace(
go.Scatter(x=list(range(0,len(knn_f1_cross_val_scores))),y=knn_f1_cross_val_scores,name='KNN'),
row=2, col=1
)
fig.add_trace(
go.Scatter(x=list(range(0,len(svm_f1_cross_val_scores))),y=svm_f1_cross_val_scores,name='SVM'),
row=3, col=1
)
fig.add_trace(
go.Scatter(x=list(range(0,len(lreg_f1_cross_val_scores))),y=lreg_f1_cross_val_scores,name='Logistic Regression'),
row=4, col=1
)
fig.update_layout(height=700, width=900, title_text="Different Model 5 Fold Cross Validation")
fig.update_yaxes(title_text="F1 Score")
fig.update_xaxes(title_text="Fold #")
# fig.write_html("./file15.html")
fig.show()
clf_random_forest.fit(X_train_smt,y_train_smt)
rf_prediction = clf_random_forest.predict(X_test_smt)
clf_knn.fit(X_train_smt,y_train_smt)
knn_prediction = clf_knn.predict(X_test_smt)
clf_svc.fit(X_train_smt,y_train_smt)
svm_prediction = clf_svc.predict(X_test_smt)
clf_logisticreg.fit(X_train_smt,y_train_smt)
lreg_prediction = clf_logisticreg.predict(X_test_smt)
fig = go.Figure(data=[go.Table(header=dict(values=['<b>Model<b>', '<b>F1 Score On Test Data<b>'],
line_color='darkslategray',
fill_color='whitesmoke',
align=['center','center'],
font=dict(color='black', size=18),
height=40),
cells=dict(values=[['<b>Random Forest<b>', '<b>KNN<b>','<b>SVM<b>','<b>LogisticReg<b>'], [np.round(f1(rf_prediction,y_test_smt),2),
np.round(f1(knn_prediction,y_test_smt),2),
np.round(f1(svm_prediction,y_test_smt),2),
np.round(f1(lreg_prediction,y_test_smt),2)]]))
])
fig.update_layout(title='Model Results On Test Data')
fig.write_html("./file10.html")
fig.show()
ohe_data =df_copy[df_copy.columns[16:]].copy()
pc_matrix = pca_model.fit_transform(ohe_data)
original_df_with_pcs = pd.concat([df_copy,pd.DataFrame(pc_matrix,columns=['PC-{}'.format(i) for i in range(0,N_COMPONENTS)])],axis=1)
unsampled_data_prediction_RF = clf_random_forest.predict(original_df_with_pcs[X_features])
unsampled_data_prediction_knn = clf_knn.predict(original_df_with_pcs[X_features])
unsampled_data_prediction_SVM = clf_svc.predict(original_df_with_pcs[X_features])
unsampled_data_prediction_LR = clf_logisticreg.predict(original_df_with_pcs[X_features])
fig = go.Figure(data=[go.Table(header=dict(values=['<b>Model<b>', '<b>F1 Score On Test Data<b>'],
line_color='darkslategray',
fill_color='whitesmoke',
align=['center','center'],
font=dict(color='black', size=18),
height=40),
cells=dict(values=[['<b>Random Forest<b>', '<b>KNN<b>','<b>SVM<b>','<b>LogisticReg<b>'], [np.round(f1(unsampled_data_prediction_RF,original_df_with_pcs['Attrition_Flag']),2),
np.round(f1(unsampled_data_prediction_knn,original_df_with_pcs['Attrition_Flag']),2),
np.round(f1(unsampled_data_prediction_SVM,original_df_with_pcs['Attrition_Flag']),2),
np.round(f1(unsampled_data_prediction_LR,original_df_with_pcs['Attrition_Flag']),2)]]))
])
fig.update_layout(title='F1 Scores for Models Before Upsampling Data')
fig.write_html("./file11.html")
fig.show()
# Creating f1 scores of models
score_list = [np.round(f1(unsampled_data_prediction_RF,original_df_with_pcs['Attrition_Flag']),2),
np.round(f1(unsampled_data_prediction_knn,original_df_with_pcs['Attrition_Flag']),2),
np.round(f1(unsampled_data_prediction_SVM,original_df_with_pcs['Attrition_Flag']),2),
np.round(f1(unsampled_data_prediction_LR,original_df_with_pcs['Attrition_Flag']),2)]
# Creating dataFrame for models score
Model_Scores = pd.DataFrame([score_list],
columns=[['Random Forest', 'KNN','SVM','LogisticReg']])
Model_Scores.head(5)
From above table it is clear that without balancing data, model perfotmances are quite weak.
import plotly.figure_factory as ff
z=confusion_matrix(unsampled_data_prediction_SVM,original_df_with_pcs['Attrition_Flag'])
fig = ff.create_annotated_heatmap(z, x=['Not Churn','Churn'], y=['Predicted Not Churn','Predicted Churn'], colorscale='Viridis',xgap=3,ygap=3)
fig['data'][0]['showscale'] = True
fig.update_layout(title='Prediction On Original Data With Support Vector Machine Model Confusion Matrix')
fig.write_html("./file12.html")
fig.show()

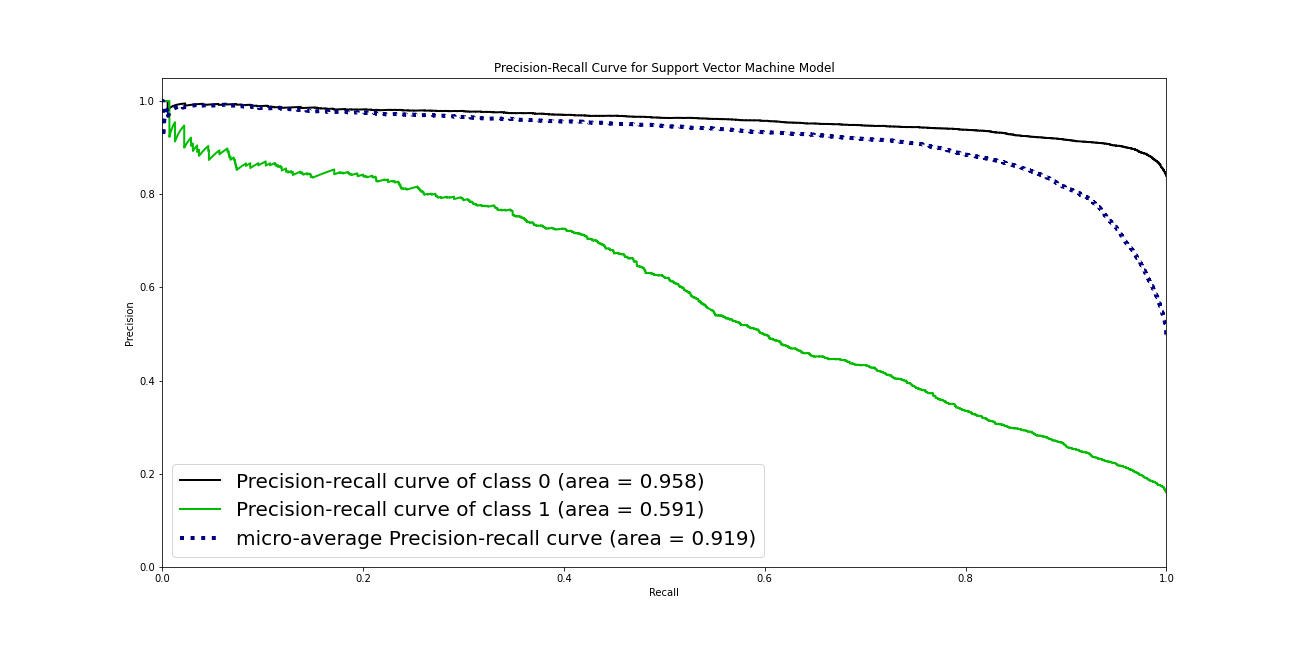

import scikitplot as skplt
unsampled_data_prediction_SVC = clf_svc.predict_proba(original_df_with_pcs[X_features])
skplt.metrics.plot_precision_recall(original_df_with_pcs['Attrition_Flag'], unsampled_data_prediction_SVC)
plt.legend(prop={'size': 20})
plt.title("Precision-Recall Curve for Support Vector Machine Model")
fig.show()
In this project Bank customer churn data analyzed. There is huge difference between the balanced and imbalnced data results. Here the importnce of resampling SMOTE() method’s importance comes into play.
Another point is that despite obtaining higher result from random forest model, VotingClassfier, which select best model among introduced model, selected support vector machine model
